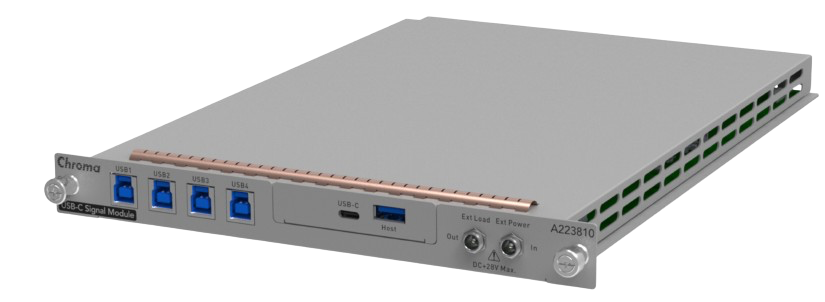

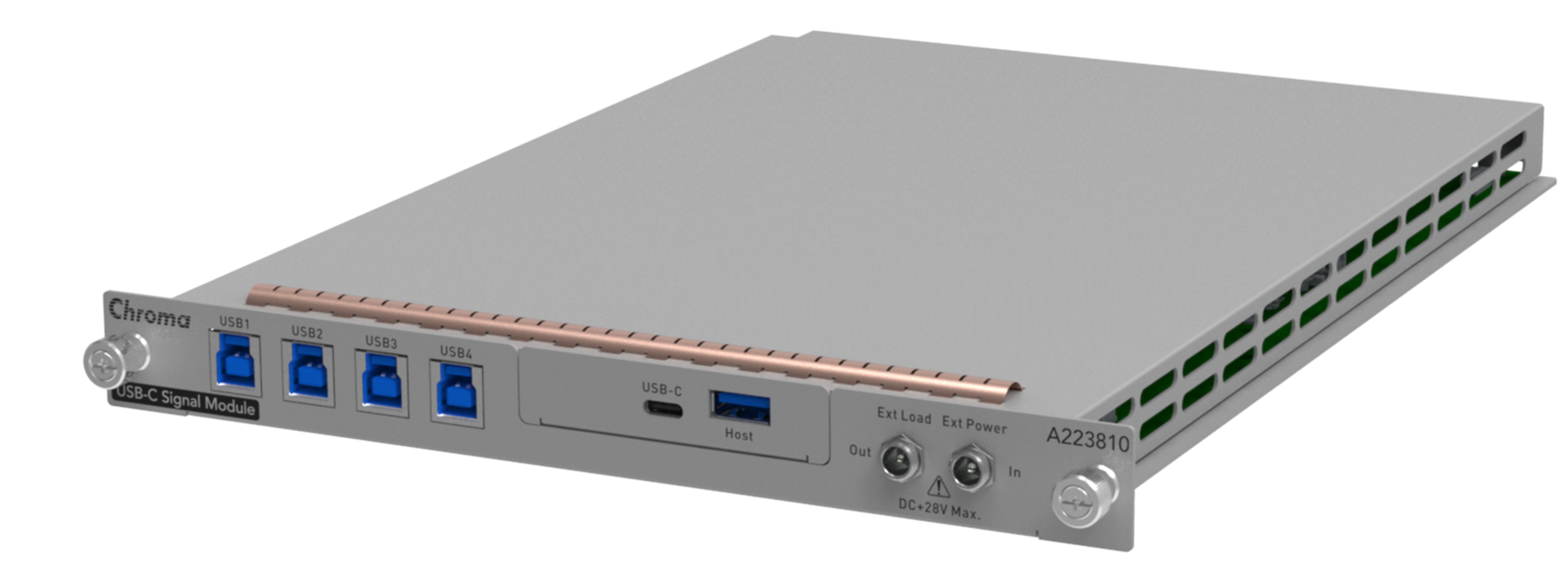

Model A223810

USB-C Signal Module

Module options for signal generator 2238
USB-C status monitoring
- Roles & modes status
- Power role
- Data role (UFP/DFP/DRP)
- VCONN status
- DP Alt mode status
- Fixed supply PDO
- Contract RDO
DisplayPort Alternate Mode
- DisplayPort v1.4
- Max resolution 8Kx4k@30Hz
- HBR3 transmission rate (4 lanes) bandwidth transmission
- Support HDCP 1.3/2.2/2.3
- 1.62/2.7/5.4/8.1 Gbps per lane
Power delivery 3.2 testing
- Voltage and current testing funcionality
- Power source & power sink role switch
- Internal power can support to 15W(5V/3A), and via external power module to reach 140W(28V/5A) output when used with A223808 Power Module
USB Pass-through test
- USB 3.2 Gen 2 (10 Gbps) and USB 3.1 Gen 1 (5 Gbps)
- USB 2.0 (480 Mbps)
- USB version detection
- USB transfer speed check
USB-C cable information interpretation (E-marked)
Supports cable flip testing
PPS, AVS, FRS, and MST testing functions
Display Stream Compression (DSC) support (optional)
4 USB-B Simulator ports
Automatized editing & test result display
