Model 52400

Overview

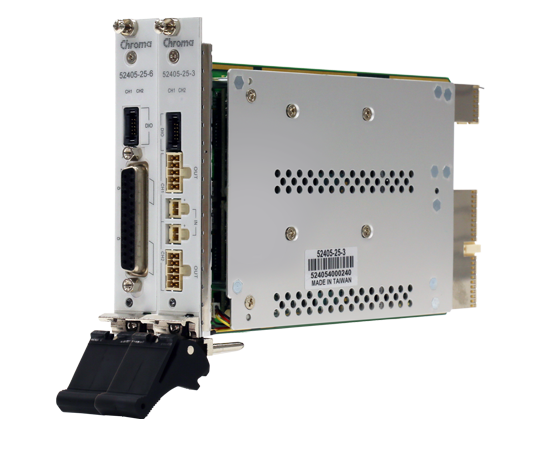

The Chroma 52400 series is a PXI based SMU (Source Measurement Unit) card designed for highly accurate source or load simulation with precision voltage and current measurements. The SMU combines four-quadrant operation with precision and high speed measurement. This makes the SMU an ideal instrument in many parametric test applications ranging from ICs, two-leaded components such as sensors, LEDs, laser diodes, transistors, to solar cells, batteries and many other electronic devices.

Key Features

Hybrid Compatible PXI
Four quadrant operation
High source/measurement resolution (multiple ranges)
Low output noise
High programming/measurement speed (100ks/S) & slew rate
Optional measurement log
DIO bits
Output profiling by hardware sequencer
Programmable output resistance
Floating & Guarding output
16 Control Bandwidth Selection
Master / Slave operation
Driver with LabView/LabWindows & C/C# API
Softpanel GUI

Four Quadrant Operation

Applications

Semiconductor Test
LED / Laser Diode Test
Battery Test
Transistor Test
Solar Cell Test
Electric Vehicle Test
Avionics Test
Power Electronics Test
Sensor Test
